Tsentraalne mootor AM24B 1.0/34/24VDC (25x25/6mm kuusnurk/5mm ruut) | TORRO
Tsentraalne mootor AM24B 1.0/34/24VDC (25x25/6mm kuusnurk/5mm ruut) | TORRO
- Power and control by the cable - changing the polarity
- Limits adjustment via limit switch

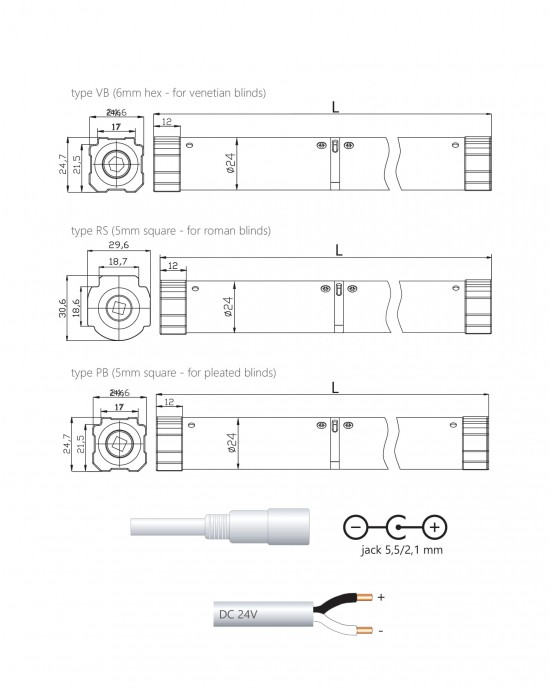

- 6mm hex adapter - for venetian blinds
5mm square adapter - for roman blinds
5mm square adapter - for pleated blinds - Integral rubber rail adaptation minimizes vibration
- Max number of circles between limits - 60
Wire
DC 24V
- black = +
- white = -
| Motor parameters | |
| Torque [Nm] | 0,8 |
| Revolutions per minute [rpm] | 34 |
| Voltage | 24V DC |
| Power consumption [A] | 0,65 |
| Power [W] | 16 |
| Diameter [mm] | 24 |
| Length [mm] | 201,4 |
| Silent run | No |
| Built-in radio receiver | No |
| Electronic limit setting | No |
| DTC potential-free | No |
| Limits (main | intermediate) | 2 | 0 |
| IP protection class | IP III |
| Working temperature | -10 ÷ 60 °C |
| Cable length [m] | 1,45 |
| Purpose | |
| For horizontal blinds | Yes |
| For pleated blinds | Yes |
| For roller blinds | No |
| For roman blinds | Yes |
| For outdoor systems | No |
